Nautica cable railing system - II – Metal post
The Nautica cable railing assembly kit combines finesse and robustness. This kit is your number one choice if want want to turn your deck railing into art. Maximize your view and impress your friends with this sleek guard rail system.
Specifications
This kit for one run of wire rope cable includes :
2 stainless steel threaded eyebolts
The fittings in this assembly kit need to be swaged with a cable crimper or a hand swager tool.
A cable railing should include 7 to 11 runs of cable, depending on the height of the posts.

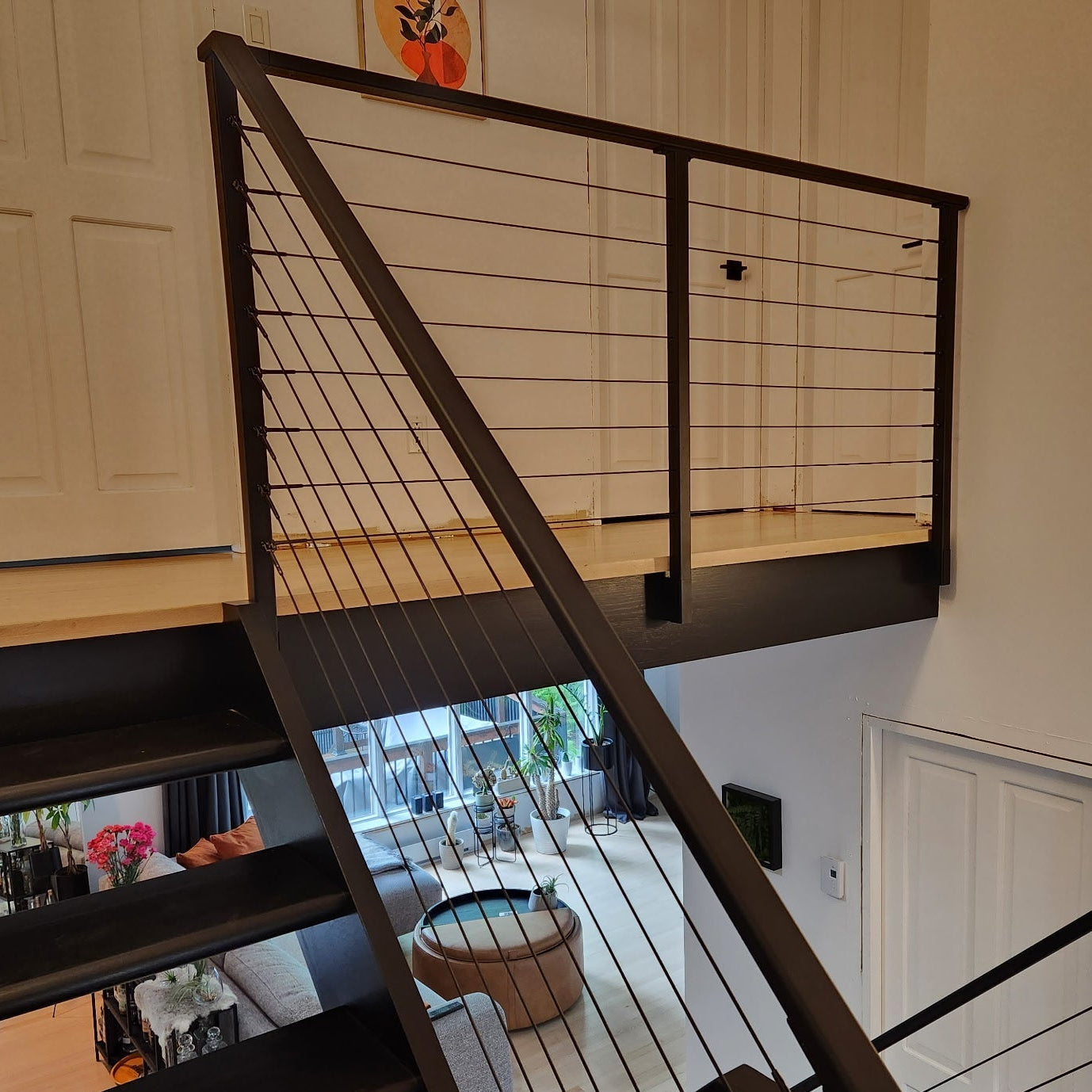

The Nautica cable railing system – II – Metal post is suitable for both indoor and outdoor cable railing projects.
The Nautica cable railing system – II – Metal post is suitable for straight runs of wire rope cable or for corner projects, especially for stair cable railing.
Installation instruction
Installation Guide (Nautica Cable Railing System - Metal Post – II)
On the front side of your end posts, drill a 11/32’’ hole in diameter to install the stainless steel threaded eyebolts.
On the back side of your end posts, drill a 7/16'' hole in diameter to install the threaded sleeves. Screw fully the threaded sleeves onto the threaded eyebolts.
Attach the swage stud turnbuckle and the swage fork terminal to the threaded eyebolts.
Insert the cable into the swage fork terminal and swage. For long distance, swage 2 or 3 times. Make sure to rotate 180 degrees for each swage to ensure robustness.
Cut the cable by measuring the distance to the swage stud turnbuckle. Insert the cable into the swage stud and swage.
For tensioning, simply rotate the turnbuckle body.
