Nautica Cable Railing System - I – Timber Post - BLACK

In stock
SKU: CA-11-51-N-0001
Regular price $24.99

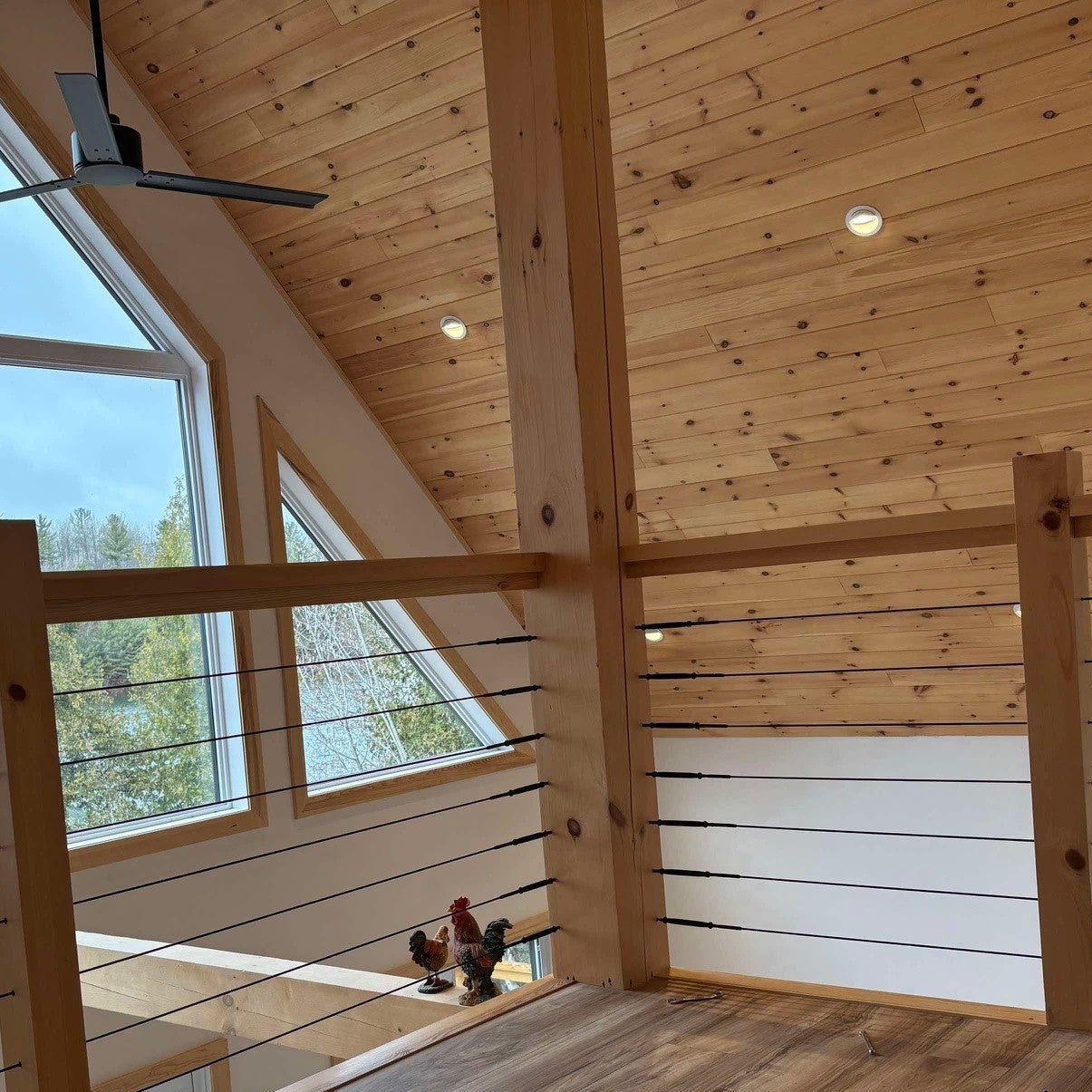

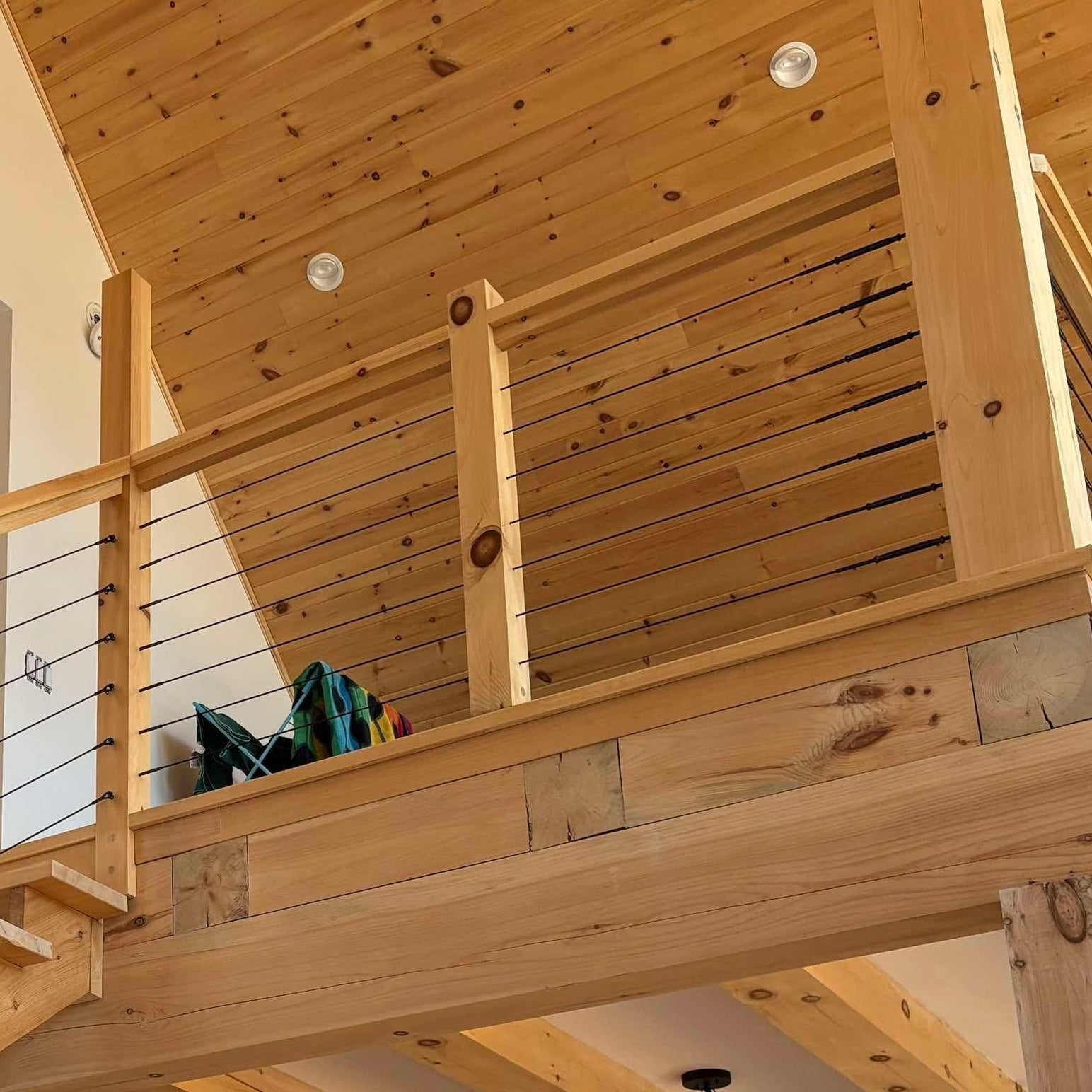

Nautica cable railing system - I – Timber post

The Nautica cable railing assembly kit combines finesse and robustness. This kit is your number one choice if want want to turn your deck railing into art. Maximize your view and impress your friends with this sleek guard rail system.



Specifications


This kit includes a swage stud turnbuckle and a Lag screw swage stud - Right Threads


The fittings in this assembly kit need to be swaged with a cable crimper.

A cable railing should include 7 to 11 runs of cable, depending on the height of the posts.

When the cable passes through intermediate posts, it is recommended to install  protective sleeves.

The Nautica cable railing system is suitable for both indoor and outdoor cable railing projects.



Installation instruction

Installation Guide (Nautica Cable Railing System - Timber Post – I)

Install the swage stud turnbuckle in the wood post

On the other end post, install the Lag screw swage stud - Right Threads.

Insert the cable into the lag screw swage stud and swage. For long distance, swage 2 or 3 times. Make sure to rotate 180 degrees for each swage to ensure robustness.

Cut the wire rope by measuring the distance to the swage stud turnbuckle. Insert the cable into the stud and swage.

For tensioning, simply rotate the turnbuckle body.
