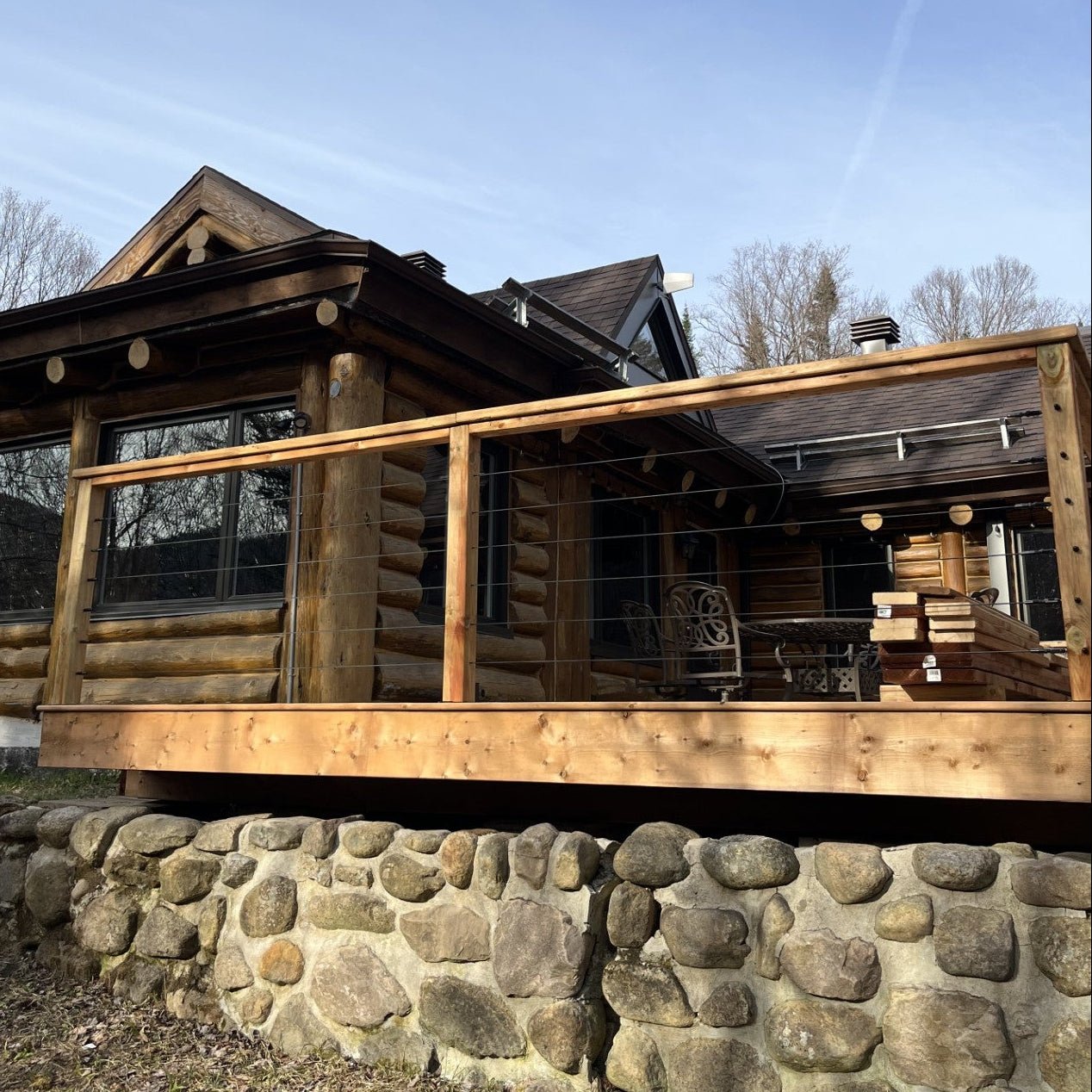

Classic cable railing system - I - Timber post - Black

The Classic cable rail assembly kit is the best choice for a long lasting style. It is the most popular kit among our customers. Easy to install, this kit can tensions a section of cable over 40 feet. The swageless wire rope fittings make it perfect for contractors or DIY : no crimping tool needed.

Specifications

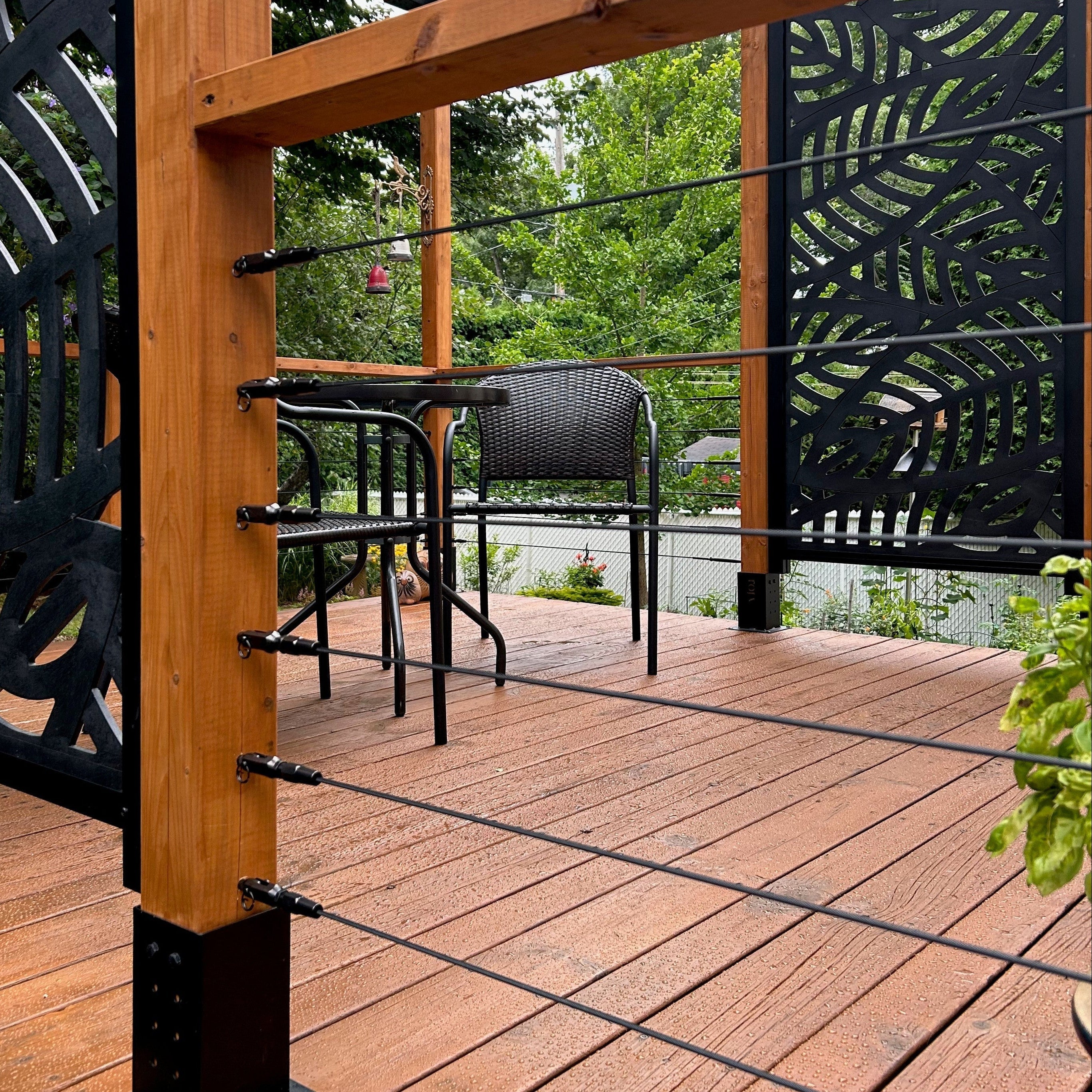

For each run of wire rope cable, this kit includes a swageless stud terminal and a swageless jaw terminal (with clevis pin) with a stainless steel screw eye.

Crafted from marine-grade 316 stainless steel for superior corrosion resistance and long-lasting aesthetic performance.

The hardware features a mechanical swage fitting which allows for fast attachment using simple hand tools.

A cable railing should include 7 to 11 runs of cable, depending on the height of the posts.

The tensioning of the cable is done by screwing the nut of the swageless stud terminal on the outside of the wood post.

When the cable passes through intermediate posts, it is recommended to install protective sleeves.

The Classic cable rail system I is suitable for both indoor and outdoor cable railing projects.


Installation instructions

Installation Guide (Classic Cable Railing System - I - Timber Post)
